Measures

Some measures taken this evening.

these three different locos (still waiting for the black set) represent three different makers; borsig, hartmann and the last Henschel. The green is the Hartmann version which of a few came to sweden, like the Emsfors loco on Ohsabanan. Also reason for some difference in details and measures.


193126  -- the wheel diameter is 6.5mm ex flanges
193126 -- the wheel diameter is 6.5mm ex flanges

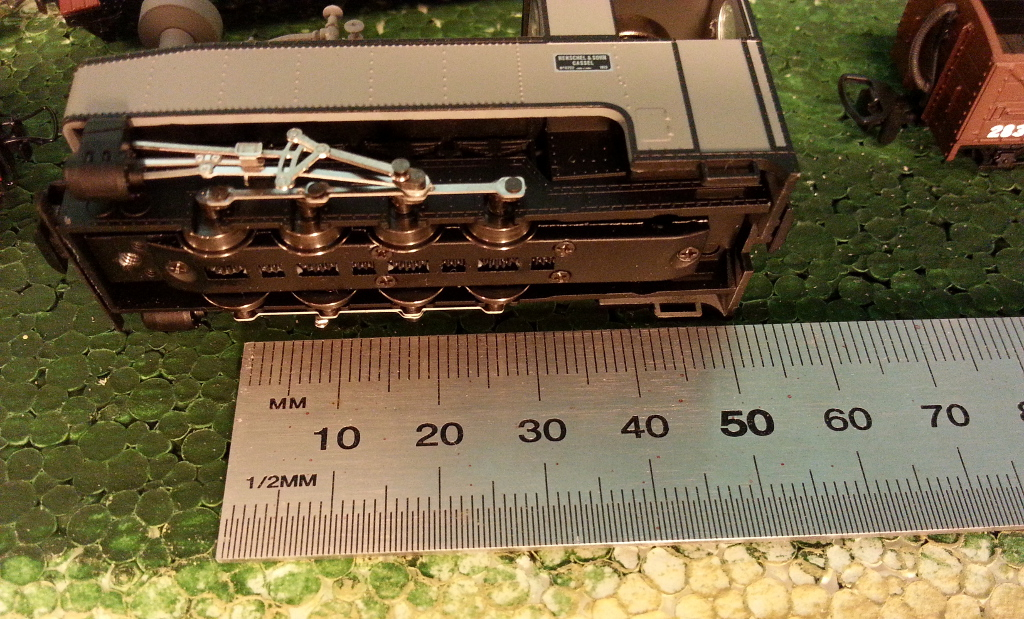

193344  -- overall length is 65mm ex couplers (72mm including)
193344 -- overall length is 65mm ex couplers (72mm including)
193504  -- outer axle wheelbase is 26mm
193504 -- outer axle wheelbase is 26mm
075646
075646
075655
075655
075743
075743
