BMT - Logbook March 2007

This article was published Mar 01, 2007.

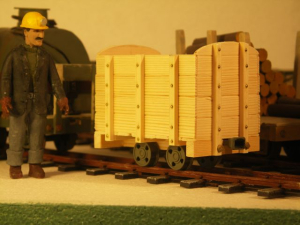

One more coal wagon

Pict 4529

Never seem to get bored of these wagon projects..., here is one more coal wagon. The coal inside is 'scaled' to 7/8in. We got our first spring sun today, so I did sit in the garden and smashed a big rock of coal into 7/8in scale while I was siping a beer. What more can a train lover ask for...?

If you are interested, there is a CAD drawing on my Download page which you can download for free (it's in pdf format, so no special program except Acrobat needed (also free on the net)).


Pict 4529
Pict 4529
Pict 4531
Pict 4531
Pict 4550
Pict 4550
Pict 4553
Pict 4553
Pict 4554
Pict 4554
Pict 4561 -- Almost done, still to clean, needs more dirt..
Pict 4561 -- Almost done, still to clean, needs more dirt..
Pict 4564
Pict 4564
Pict 4572
Pict 4572
Pict 4594 -- Maybe not one of my best weatherings, but at least it got dirty...
Pict 4594 -- Maybe not one of my best weatherings, but at least it got dirty...

BMT Coal Wagon, Second series

First time ever I made and finished more than one wagon of the same type, for me that is a serie..

Pict 4595 -- Test fiting frames before glueing
Pict 4595 -- Test fiting frames before glueing
Pict 4597 -- Inside axles boxes, just a brass tube on a U angle
Pict 4597 -- Inside axles boxes, just a brass tube on a U angle
Pict 4600 -- All parts made
Pict 4600 -- All parts made
Pict 4602 -- This time I did pre-paint so I can avoid white lines in corners where the glue fills the wood instead of paint.
Pict 4602 -- This time I did pre-paint so I can avoid white lines in corners where the glue fills the wood instead of paint.
Pict 4606 -- all parts are dry, time to check parts before assembly
Pict 4606 -- all parts are dry, time to check parts before assembly
Pict 4607 -- assembling started
Pict 4607 -- assembling started
