FR - Galtströms Kran

This article was published Dec 16, 2018.

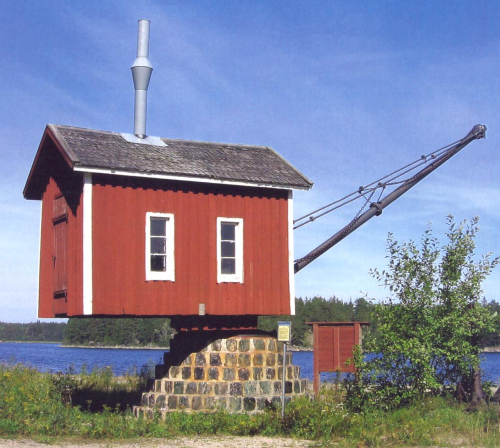

02 -- the real deal at Galtströms mill
02  -- the real deal at Galtströms mill


This crane was published in swedish AOH magazine a couple of years back, always in my memory since then. Today that dream came true!

These 3D printed details will be placed on a wooden building, made in "conventional" way with plywood frame, basswood supports and roof tiles from white glue mold in my printed mold forms.

A person just fit standing up under it, so you can measure from that. No more precise measures was included in the article.

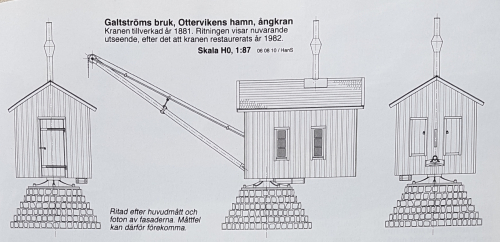

01 -- the drawing
01  -- the drawing

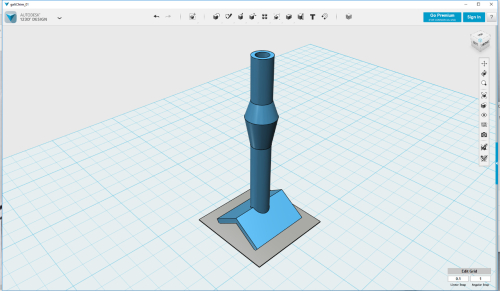

01 -- chimney
01  -- chimney

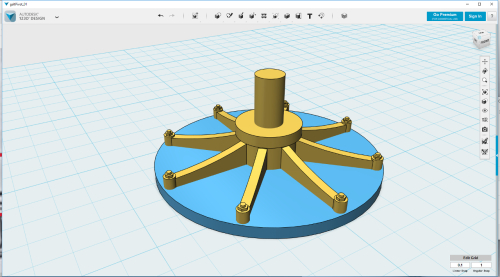

01 -- the pivot it stands on
01  -- the pivot it stands on

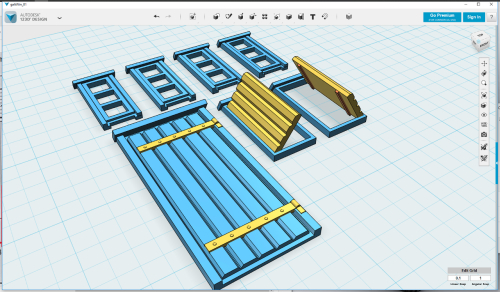

01 -- doors, windows and hatches
01  -- doors, windows and hatches

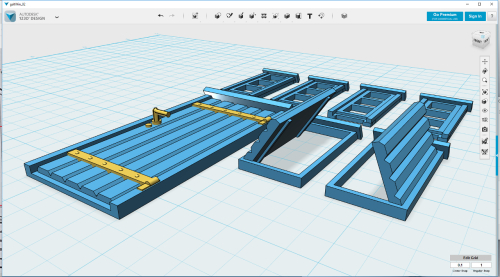

02 -- another angle
02  -- another angle

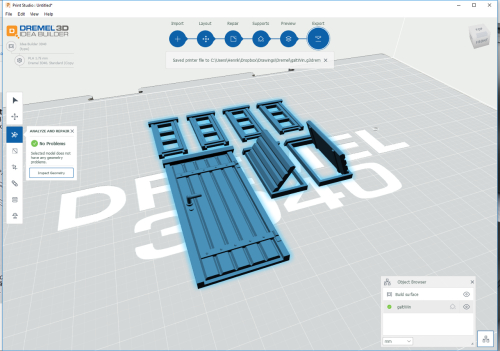

02 -- window kit in the splicer program
02  -- window kit in the splicer program
