Did install and paint last wind-boards today, now all is in place. Upper red half only misses windows so I started to dust of my Silhouette Curio cutter. Turned out it doesn´t work anymore ...:sad: well, all works except the needle does not go up and down, which is rather essential to get anything cut ... Time will tell, sent a mail to support, will report the outcome later.

Since I couldn´t start with the windows, I looked into the bin chutes instead. At first I planned to 3D print the details, but when looking at it I realize the cutter will work just fine for this! (when it does...)

First two photos below

shows the screenhouse drawing I am following from swedish Narrow Gauge society members news, years back from now. If I can find space I will build the little engine house to, which was placed a bit away from the hoist building. (to the right in my pictures). On my layout that is, not included on the drawings. The little house in the bottom right corner there beside the O&K loco is the scalehouse, which of course must be built to ..:smile:

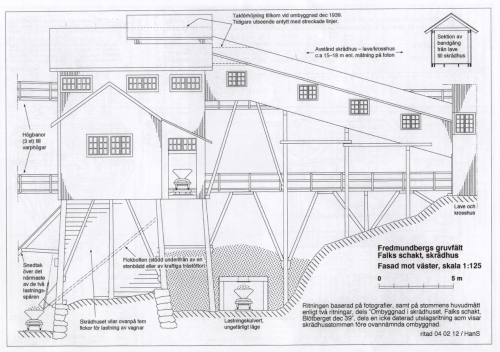

drawing 1
drawing 1

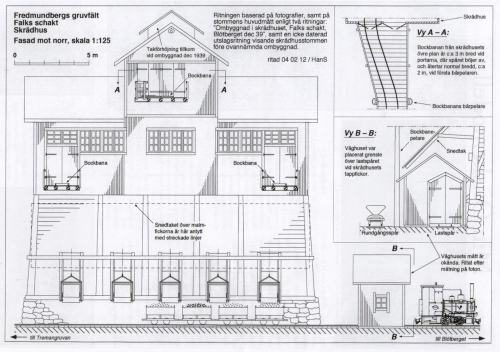

drawing 2
drawing 2

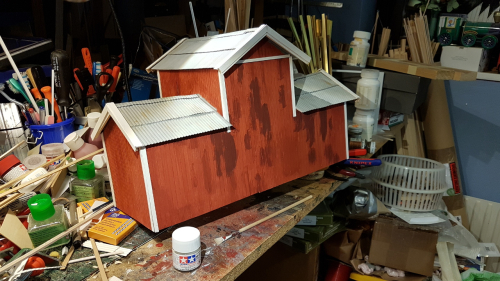

211927 -- finally all the wind-boards are installed and painted!
211927  -- finally all the wind-boards are installed and painted!

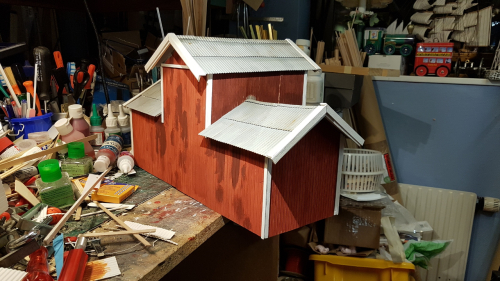

211957
211957

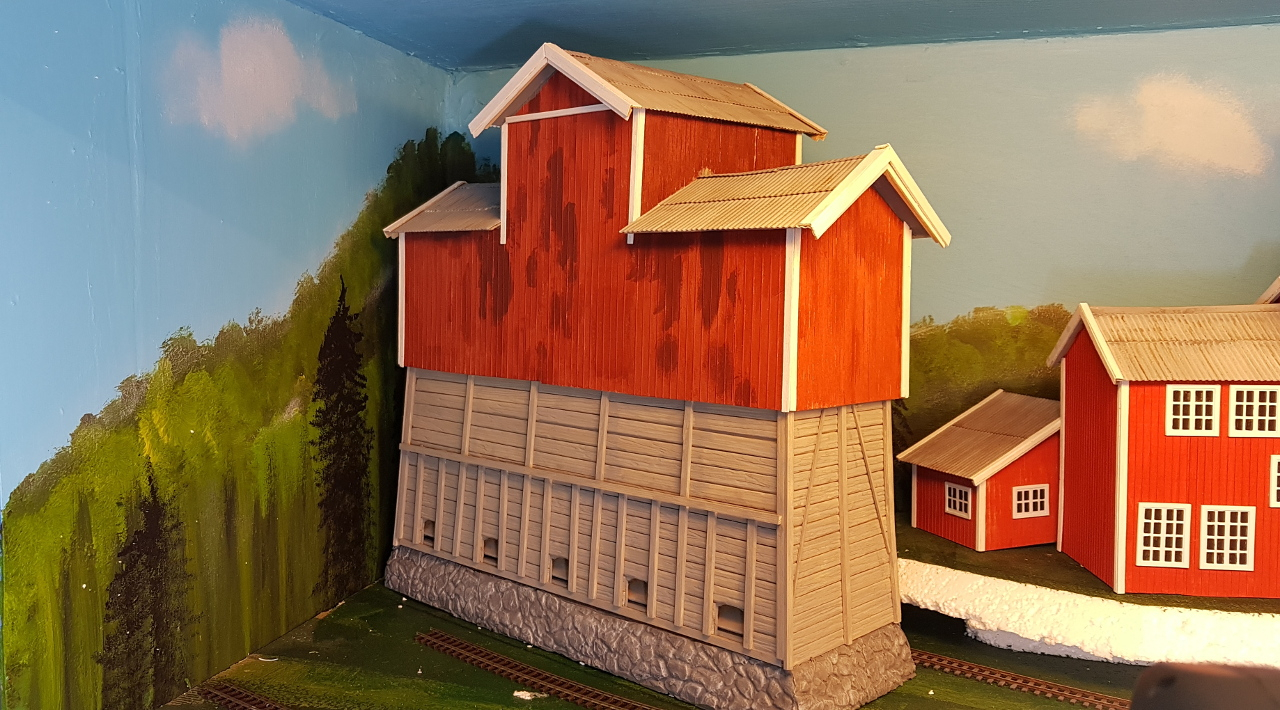

212141 -- in place on the layout
212141  -- in place on the layout

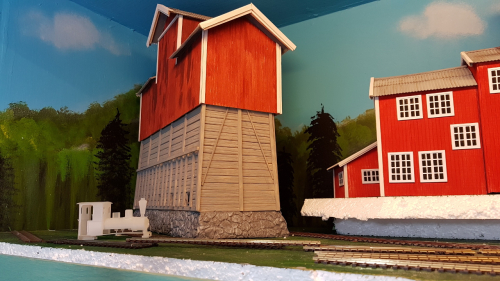

212236
212236

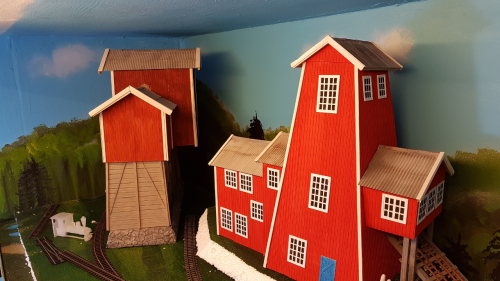

212256
212256

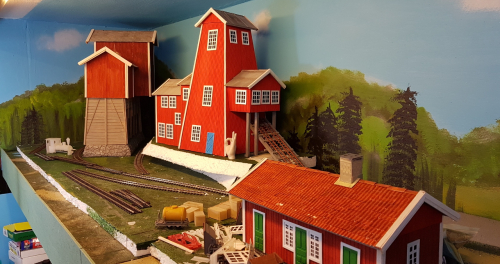

212510
212510

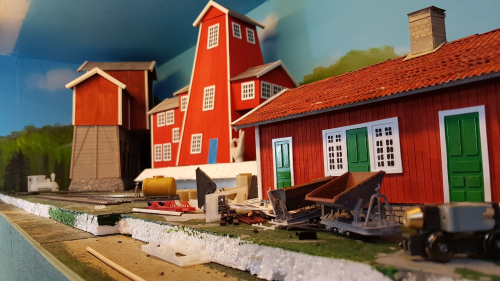

212458
212458
