KFJ - Screenhouse, windows 1

This article was published Feb 04, 2018.

title

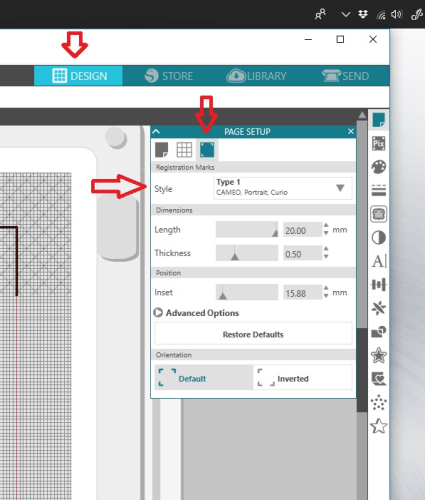

Got reply from support this week about my Curio cutter. It turns out that when you install latest version of Silhouette Studio on a new computer, with no old settings from a previous version, the registration mark function is on by default ... Since a new white styrene sheet has no registration marks, the shuttle just goes around looking and finds nada, and goes back to home position again. To change this, look at below first image, select "Design" button at the top, then in the "Page setup" window change to last tab for "Reg Marks. When there, set style to "Off" instead of "Cameo, Portrait, Curio". Load your drawing and press "Send" - Voila, it works again!

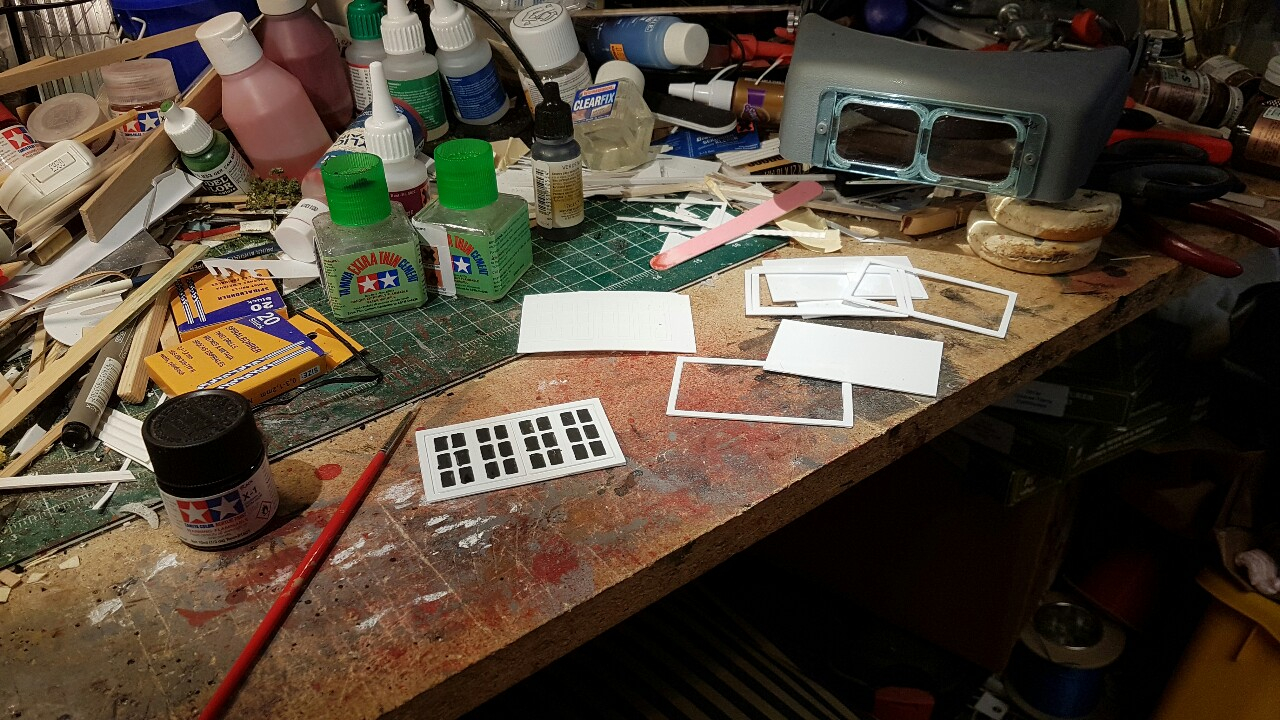

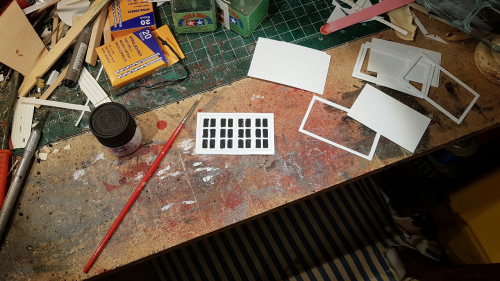

Last two shows the start of all the windows for this building, there is a lot more to do!


144159
144159
144211
144211
