Klenshyttan - The cableway

This article was published Nov 13, 2016.

title


Since last I have painted and ballasted the standard gauge in the back. Also put on roofs and painted the three side-buildings. See first photos below.

When this was done it was time to put attention back to the front and concentrate on the cableway station on the foundry side. Looking at the history page I could not get my head around how that part was constructed. I could not found one picture which was showing more than just a bit from the left. I did again surf around and found the site (and page) ekeving.se/klenshyttan made by Gunnar Ekeving. On that page he shows the mainline station Klenshyttan with it´s trackplan. He was kind to let me publish pictures from his page here. On the trackplan are both the coalbarn and the foundry marked (see below), specially a clear drawing from above showing how the cableway station is made.

current status

A few pictures showing how it looks today.

backside with the mainline siding

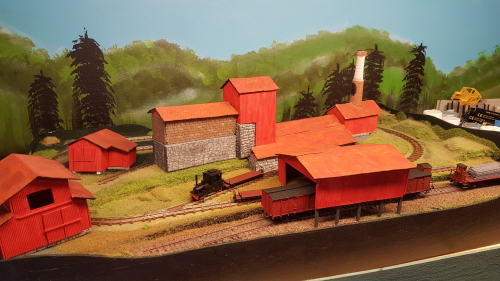

124943
124943

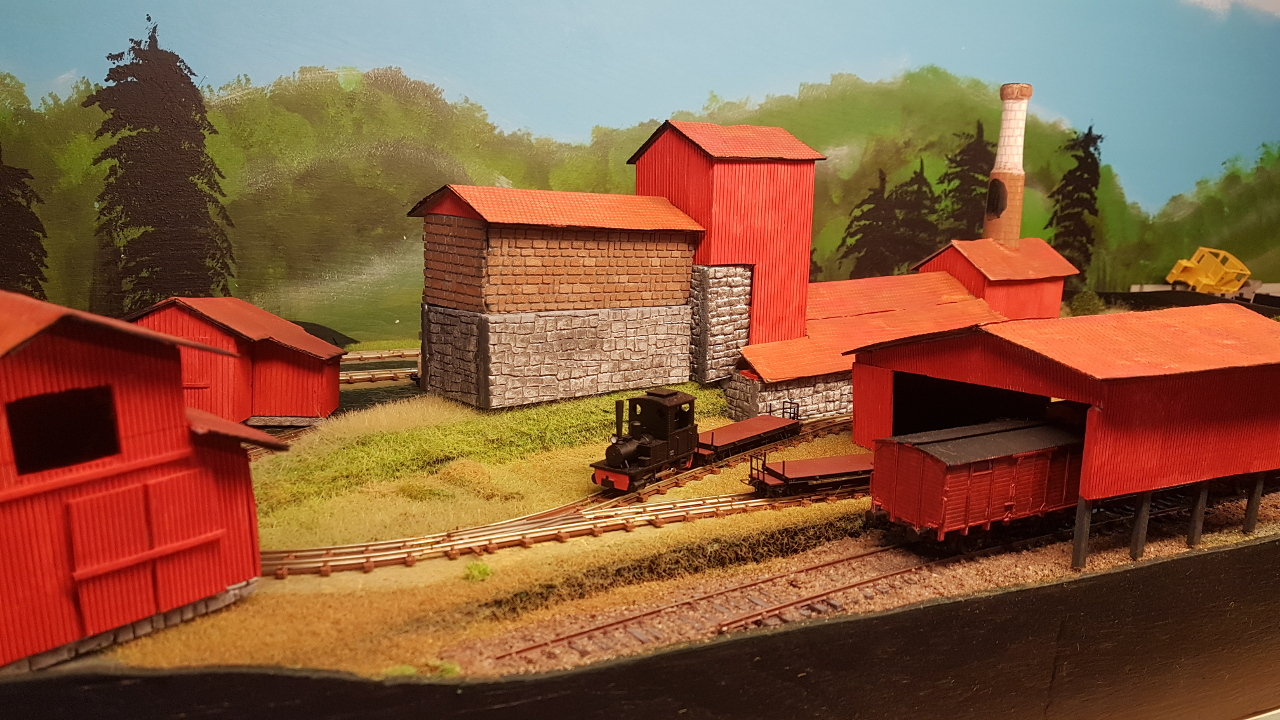

124953
124953

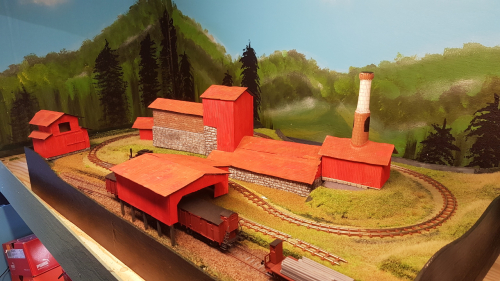

125028
125028

front view with the dam

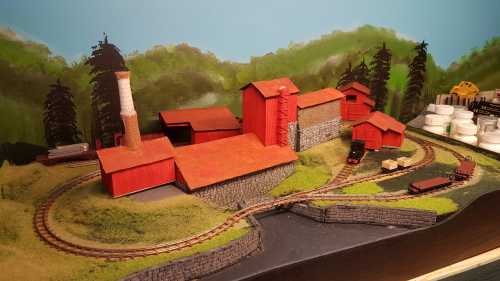

125239
125239

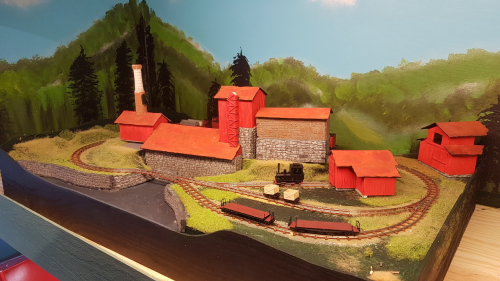

125228
125228

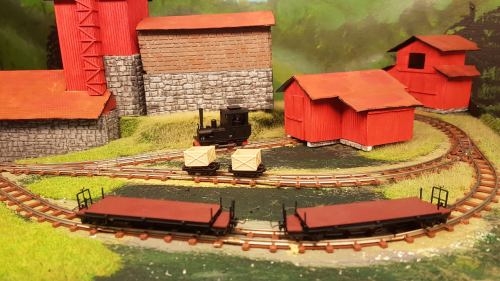

125300
125300

cableway station

Time to concentrate on the front and the cableway station specially, which demanded a bit investigation on how this part of the building actually looks like.

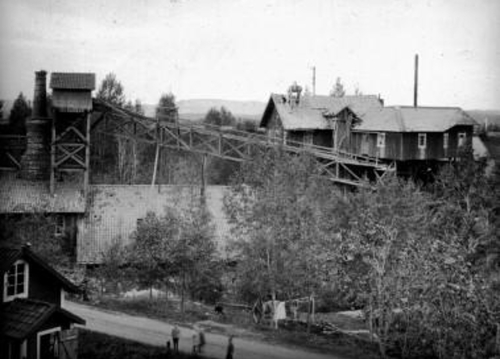

the foundry -- not easy to understand the cableway station here (right, sticking out, standing on stilts)
the foundry -- not easy to understand the cableway station here (right, sticking out, standing on stilts)

Klenshyttan mainline station trackplan

A few pictures borrowed from Gunnar Ekeving´s site. Used with permission.

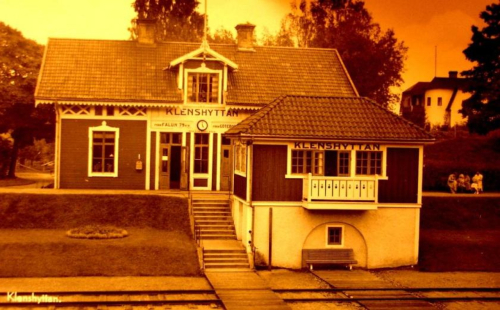

mainline station house
 mainline station house

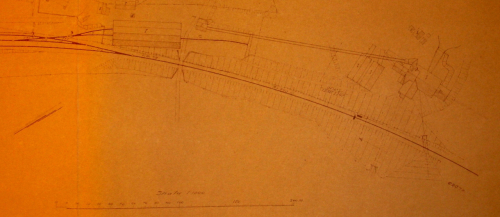

station trackplan, east side -- note the coalbarn up left and foundry at far right
station trackplan, east side  -- note the coalbarn up left and foundry at far right

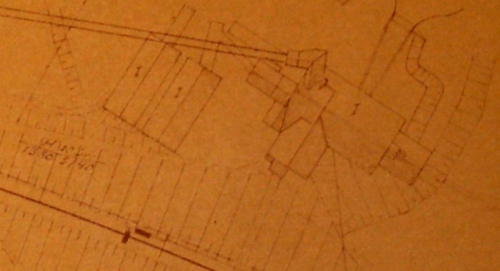

station trackplan, enlarged -- at right you clearly see the cableway station from above
station trackplan, enlarged  -- at right you clearly see the cableway station from above
