The BEET project - Wagon drawings

This article was published May 17, 2012.

If you want to know more about this rolling stock in real life, go to IBK´s homepage www.ibk.dk in Denmark, they have several of them and more to it!

Roebane Wagons

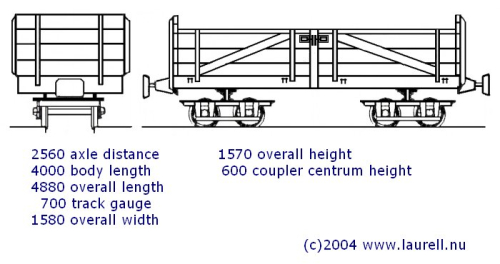

open1 -- open, for raw sugar beets

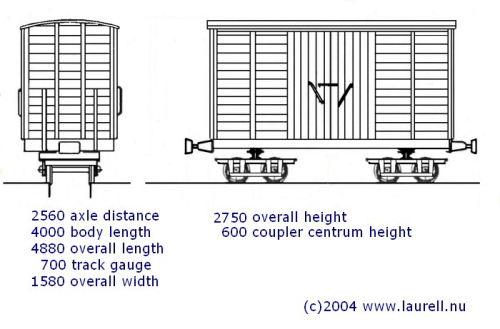

open1 -- open, for raw sugar beets closed1 -- closed wagon, for refined and bagged sugar

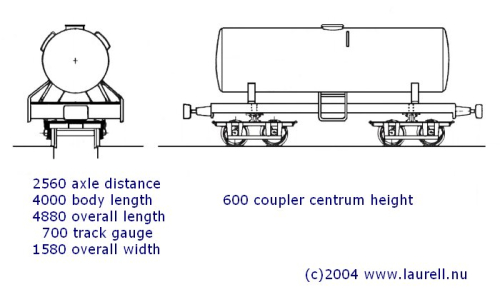

closed1 -- closed wagon, for refined and bagged sugar tank1 -- tank wagon, for extending loco range.

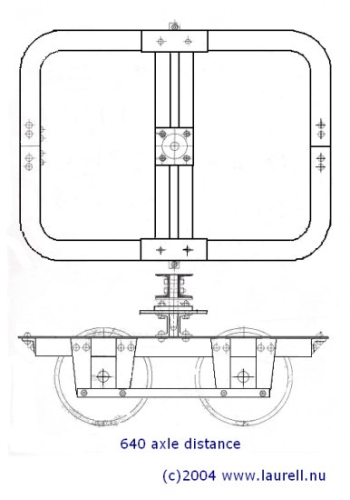

tank1 -- tank wagon, for extending loco range. bogie1 -- The danish beet railways had very special bogies on there wagons. Two types was used with the only difference that they had different types of springs.
bogie1 -- The danish beet railways had very special bogies on there wagons. Two types was used with the only difference that they had different types of springs.
