Combat Boat 90H

This article was published May 17, 2012.

s90 rote

Schematics from FMV

On August 30, 1999 the schematics finally arrived from FMV (Swedish Defence Materiel Administration), after 5-6 months of mails and phone calls - nagging pays off! Included in the envelope was not only a very nice building plan in 1:70 scale, complete with frames (well, enough to build a model from, at least) but also a leaflet over the Combat Boat showing internals, details and colours used. All rights belong to FMV, of course, but this is not secret information so it's OK to download for reference. If you print these, choose landscape format.

Plans and Images

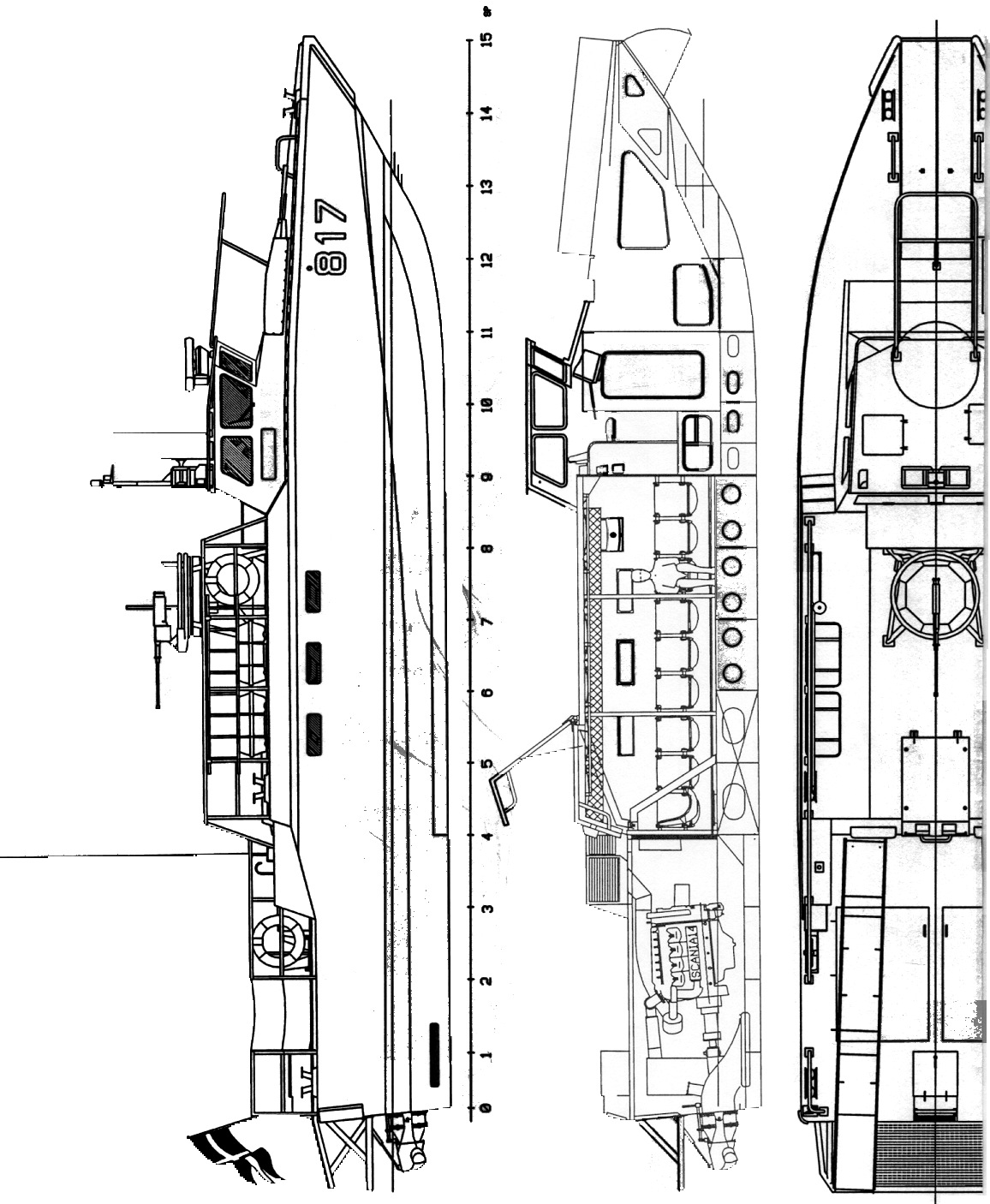

NEW Feb 6, 2005: By common request - 1:1 scan of the drawing, part 1(2)

Observe!! This is 332 kb. When loaded, right-click and select 'Save Picture As'.

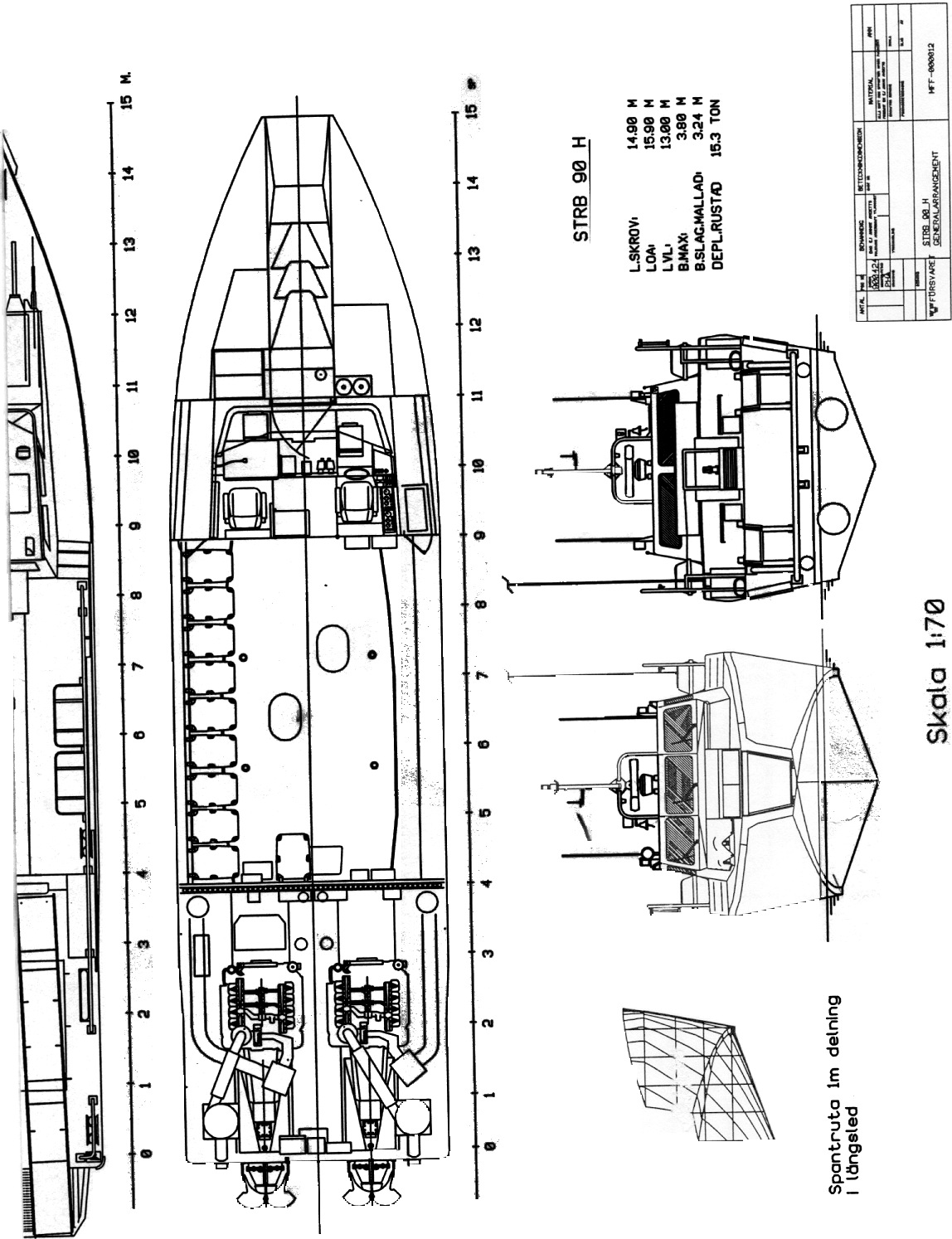

NEW Feb 6, 2005: By common request - 1:1 scan of the drawing, part 2(2)

Observe!! This is 345 kb. When loaded, right-click and select 'Save Picture As'.



s90b01 -- Very nice 3D image giving a good feel for how it looks. This is a much better scan than what has been around on the net for some time. This was tricky to fix the original was so big I had to scan it 3 times and afterwards cut and paste to get it right.
s90b01 -- Very nice 3D image giving a good feel for how it looks. This is a much better scan than what has been around on the net for some time. This was tricky to fix the original was so big I had to scan it 3 times and afterwards cut and paste to get it right.
s90p01 -- Building plan from side.
s90p01 -- Building plan from side.
s90p02 -- Building plan from top.
s90p02 -- Building plan from top.
s90p03 -- Building plan front view with frames
s90p03 -- Building plan front view with frames
s90b03 -- The leaflet back-page also in a much better scan than what has been around on the net for some time. A bad copy of this was all I got, to start with the first 5-6 months.
s90b03 -- The leaflet back-page also in a much better scan than what has been around on the net for some time. A bad copy of this was all I got, to start with the first 5-6 months.
s90b10 -- Big picture showing CB90 in action.
s90b10 -- Big picture showing CB90 in action.

Colors and Area-Scheme

To show the absolute correct colors are not possible, but below is a good estimate. Below scheme's four colors are as this, hull-bottom is black. Compare with photos on the real thing.

Given the fickle nature of computer screens and printers, it's impossible to show an absolutely accurate depiction of the colours used, but the table below should give you a rough idea. The four colours are below, and the underside of the hull is black. Refer to photos of the prototype for more detail.

(1) Color Code 048 Yellow-Green, taste of sand

s90camo01 -- Camoflage colors and area scheme. This is from a friend of mine, not from FMV directly.
s90camo01 -- Camoflage colors and area scheme. This is from a friend of mine, not from FMV directly.
this scan shows the different areas on the camo.
(2) Color Code 062 Light-Green/Gray

(3) Color Code 049 Middle-Green/Gray

(4) Color Code 072 Dark-Green

Interials

s90b04 -- Cargo bay Conn
s90b04 -- Cargo bay Conn
s90b07 -- navigator's position Conn
s90b07 -- navigator's position Conn
s90b06 -- helmsman's position
s90b06 -- helmsman's position
s90b08 -- Route to the front hatch
s90b08 -- Route to the front hatch
s90b09 -- From the inside Soldiers disembarking via the hatch
s90b09 -- From the inside Soldiers disembarking via the hatch

First Drawing

Length 14.9m equals to 106.4cm in 1:14 scale. Width 3.8m equals to 27.1cm in 1:14 scale

This was all I got to start making my own plans from, the first 6 months. 'Stridsbåt', thats swedish for 'Combat boat'. I keep this for historic reasons, see above plans for better reference.

s90skiss
s90skiss

Police Version

Below shows some photos on the police version taken in Gothenburg harbour, spring of 99.

s9912p01 -- Sideview front
s9912p01 -- Sideview front
s9912p02 -- Closeup on rails and cabin
s9912p02 -- Closeup on rails and cabin
s9912p03 -- Middle deck from astern. No gunbarrel on police version
s9912p03 -- Middle deck from astern. No gunbarrel on police version
s9912p04 -- Cabin front
s9912p04 -- Cabin front
s9912p05 -- Closeup on mast
s9912p05 -- Closeup on mast
s9912p06 -- Cabin on top
s9912p06 -- Cabin on top
