Koltorp - Final trackplan

This article was published May 05, 2017.

title

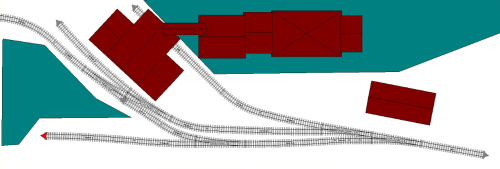

Settled on my final trackplan yesterday. Most of the previous plans I made did not fit into the space available (each module will be 55 * 160cm), so I did pick out good old SCARM program and made these sketches. Reasonable simple plan with all switches easy accessible from the front.
